pCOe

pCOe

  • General characteristics

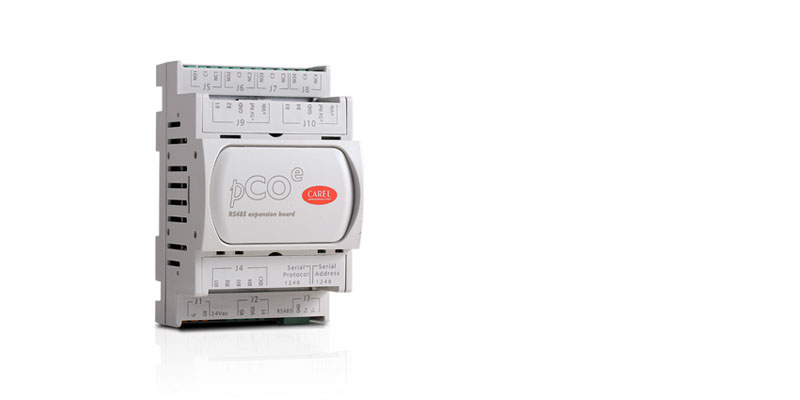

    pCOe is the I/O expansion card that offers users a good combination of inputs and outputs, both digital and analogue.

  • Plus
    • DIN rail mounting (4 DIN)
    • 4 analogue inputs, 4 digital inputs, 1 analogue output and 4 digital outputs
    • 4 relays, all with changeover contacts
    • 24 Vac/Vdc digital inputs
    • 24 Vac/Vdc power supply
    • Integrated RS485 port
    • Modbus protocol support
    • c.Suite and 1tool libraries for rapid integration


Documentation

Technical

  • 2D/3D drawings
    * Entries are ordered by date
    Code Description Language Date * Release
    Code 2D-3D pCOe

    		 Description 2D-3D drawings

    		 Language ALL

    		 Date 02/10/2023

    		 Release R0

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050003265

    		 Description pCOE: scheda espansione I/O PCOE****** 24Vac / I/O expansion board PCOE****** 24Vac

    		 Language ENG  ITA

    		 Date 11/10/2017

    		 Release 1.6


Images

  • High resolution images
    * Entries are ordered by date
    Code Description Language Date * Release
    Code PH17LPC301-pCOe

    		 Description pCOe-CAREL-Programmable Controls-I/O expansions

    		 Language ALL

    		 Date 02/09/2021

    		 Release R.0
